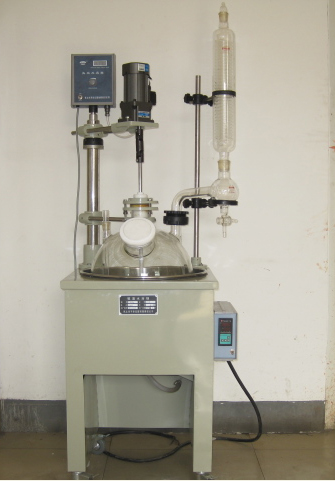

單層玻璃反應釜

來源：wubaiyi 發布日期：2013-07-18 14:50:24

摘要：

型號 Model		F2H	F5H	F20H	F20H2	F50H2
基本參數	反應瓶 Reaction flask(L)	2	5	20	20	50
	瓶口數 The mouth number of the bottle	4	4	5	6	6
	攪拌功率 Stirring power(W)	90	120	250	250	250
	轉速 Speed(rpm)	60-1300	40-1700	40-1700	40-1700	40-720
	攪棒軸徑 The diameter of Stirring bar(mm)	φ6	φ10	φ10	φ10	φ12
	浴鍋 Heating bath	1.5kw 180℃	2kw 180℃	3kw 180℃	3kw 180℃	6kw 180℃
	電源 Power(V)	220	220	220	220	380
功能配置	變頻調速 Frequency-converting	/	●	●	●	●
	真空密封 Vacuum sealing	●	●	●	●	●
	±0.2℃溫控 ±0.2℃controlling of temperature	●	●	●	●	●
	浴鍋放液 Discharge of healing bath	●	●	●	●	●
	PTFE攪拌 PTEE stirring bar	●	●	●	●	●
	加料活塞 Charging cork	●	●	●	●	●
	測溫管 Tube for testing temperature	●	●	●	●	●
	回流冷凝器 Reflux condenser	○	●	●	●	●
	蒸餾冷凝系統 Distillation condenser system	/	○	○	○	○
	真空表 Vacuum meter	/	○	●	●	●
	傾斜式立體攪拌 Inclined stereoscopic stirring	/	/	●	●	●
	自動正反攪拌 Automatic stir in CW or CCW	/	/	○	○	●
	多功能口 Mouth for muti-fanctions	/	/	●	●	●
	下出料口 Low mouth for taking material out	/	/	/	●	●
	放料活塞 Discharging cork	/	/	/	●	●
	浴鍋蓋 Cap of heating bath	○	○	○	○	○
	防積塞 Corke for anti-block	/	/	/	●	●
	低速增力 Increase power under lower speed	/	○	○	○	○
	冷卻盤管 Cooling coils	/	/	○	○	○
